The Nootka

Main: 896 sq. ft.

Loft: 322 sq. ft. (over 6' headroom)

Garage: 574 sq. ft.

Total living space = 1218 Square Feet (plus garage)

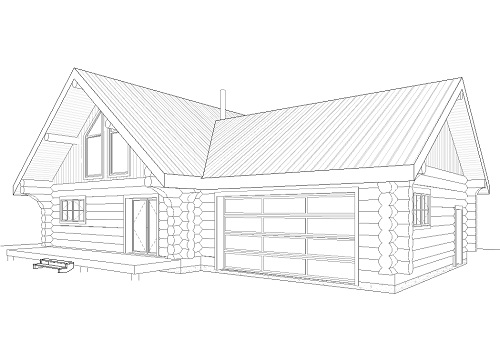

Click image to view other elevations and floor plans

The Nootka is a modified Miskito plan. The main change to the Miskito is the addition of a 1/2 loft w/ shed dormer instead of a rancher style building. The Nootka design shows 1 bedroom on the main level with room for another bedroom (or master suite) in the loft. Other features are a large mud/utility room, vaulted ceiling over the living room and kitchen/dining area, and an ample sized attached garage or workshop.

Select the image above to open a .pdf file of the elevations and floor plans. They are set up to print on a 8 1/2" x 11" paper.

Pricing:

$1100.00 CDN - Includes 5 sets of the Standard Construction Set (see rates and services for details), free shipping, and 4 hours of revisions to the plans.

An upgrade to a Complete Construction Set may be be added on at time of order for an additional $.25 per square foot (Main and Upper living space, if applicable)

Extra prints and/or shipments may also be added on. Cost determined by quantity of prints and shipments.

As with all stock plans, you can make as many changes as you want/need. However, 4 hours of changes are included in the package price. Additional hours are charged at the current hourly rate (see rates and services for details). An estimate of the time required and extra cost will be provided.

Click here to e-mail your order request

Please include your contact information and the plan name you are interested in with your request.
