The Cherokee

Main: 1167 sq. ft.

Loft: 610 sq. ft.

Total = 1777 square feet

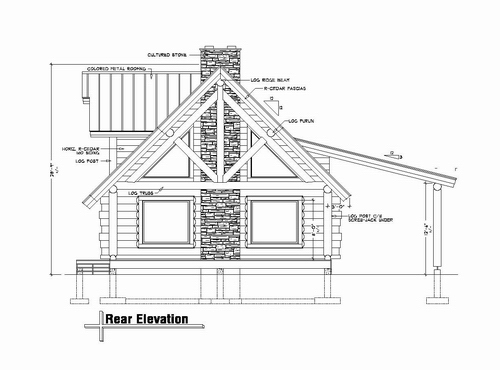

Click image to view other elevations and floor plans

The Cherokee features an impressive log truss, ample covered deck (and parking area), a loft area open to below, and the stone faced masonry fireplace. There are 2 full bathrooms, and a potential for 3 large bedrooms. The plan also incorporates 8' high doors, and the windows are all placed at 8' to the top. This allows larger windows for more light and heat from the sun to enter the structure. This is a brilliant design for anyone who appreciates the true beauty of a log home.

Click this image to view a .pdf file of the elevations and floor plans. They are set up to print on a 8 1/2" x 11" paper, in 1/8" = 1'-0" scale.

Pricing:

$1700.00 CDN - Standard Construction Set (see rates and services for details) with 4 hours of revisions to the plans.

An upgrade to a Complete Construction Set may be be added on at time of order.

Prints and/or shipments may also be added on. Cost determined by quantity of prints and shipments.

As with all stock plans, you can make as many changes as you want/need. However, 4 hours of changes are included in the package price.

Additional hours are charged at the current hourly rate. An estimate of the time required and extra cost will be provided.

Click here to e-mail your order request

Please include your contact information and the plan name you are interested in with your request.

Return to Chalet Stock Plans
