A 3D model of this plan has been completed! Click to be taken to the page.

 The Chinook

 Main: 1660 sq. ft.

 Loft: 1192 sq. ft.

 Total = 2852 square feet

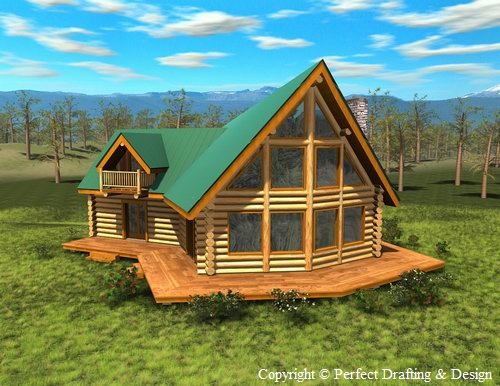

The Chinook

Click image to view other elevations and floor plans

The Chinook is a unique blend of functionality and impressive design. The design's soaring, inclined roof lines shoot out past the extensive front prow & compliment the "Y" shaped layout of the log work. Just over 1600 sq/ft on the main floor and another 1100 up, provide ample space for the entire family to enjoy. The loft can easily be developed into 2 bedrooms and a bathroom.

Click this image to view a .pdf file of the elevations and floor plans. They are set up to print on a 8 1/2" x 11" paper, in 1/8" = 1'-0" scale.

Pricing:

$2750.00 CDN - Includes 5 sets of the Standard Construction Set (see rates and services for details), free shipping, and 4 hours of revisions to the plans.

An upgrade to a Complete Construction Set may be be added on at time of order for an additional $.25 per square foot (Main and Upper living space, if applicable)

Extra prints and/or shipments may also be added on. Cost determined by quantity of prints and shipments.

As with all stock plans, you can make as many changes as you want/need. However, 4 hours of changes are included in the package price. Additional hours are charged at the current hourly rate (see rates and services for details). An estimate of the time required and extra cost will be provided.

Click here to e-mail your order request

Please include your contact information and the plan name you are interested in with your request.
