The Chilcotin

 Main: 1605 sq. ft.

 Loft: 472 sq. ft. (over 6' headroom)

 Total = 2077 square feet

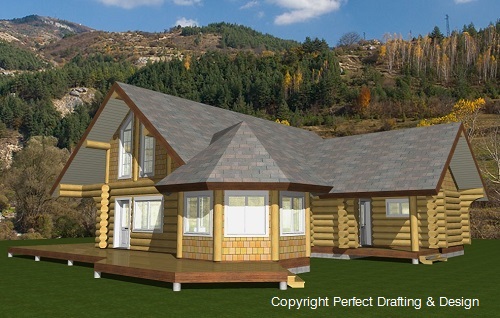

The Chilcotin

Click image to view floor plans

The Chilcotin boasts an octagon shaped dining room, vaulted living room, large open loft area on second level, and 2 bedrooms on the main level (1 of which has an ensuite bathroom and vaulted ceilings, making for a modest but effective size master bedroom).

There is potential to covert the open loft area into an expansive master suite, making the current main floor master bedroom into an office, den, or great guest suite.

Click this image to view a .pdf file of the floor plans.


$2050.00 CDN - Includes 5 sets of the Standard Construction Set (see rates and services for details), free shipping, and 4 hours of revisions to the plans.

An upgrade to a Complete Construction Set may be be added on at time of order for an additional $.25 per square foot (Main and Upper living space, if applicable)

Extra prints and/or shipments may also be added on. Cost determined by quantity of prints and shipments.

As with all stock plans, you can make as many changes as you want/need. However, 4 hours of changes are included in the package price. Additional hours are charged at the current hourly rate (see rates and services for details). An estimate of the time required and extra cost will be provided.

Click here to e-mail your order request

Please include your contact information and the plan name you are interested in with your request.
